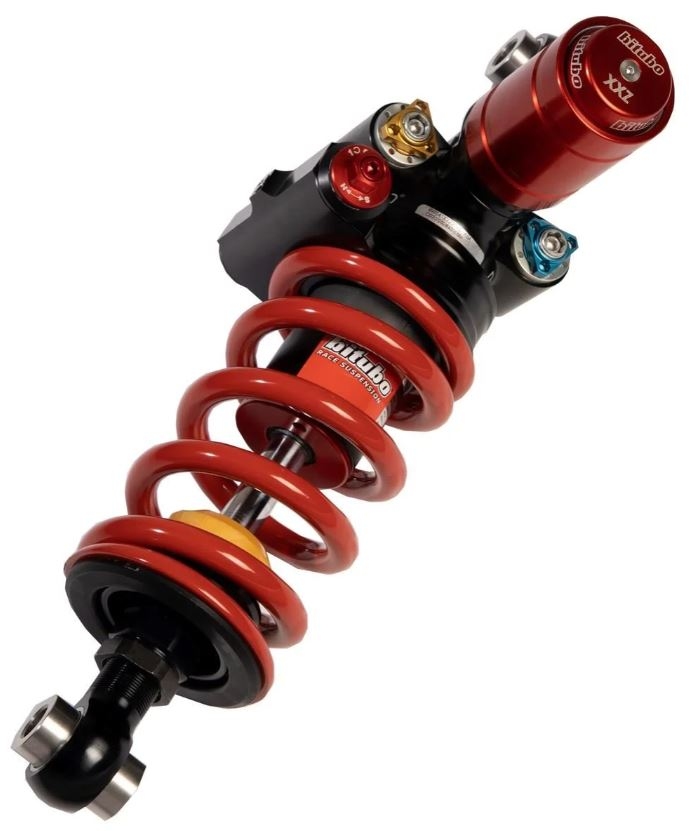

Top of the line professional level race shock, the XXF is confirmed technologically at the top, presenting itself with a totally renewed design bringing with it many technical innovations, such as the 4 adjustments: compression and extension at low and high speeds, with new settings designed to give the rider the best feeling possible.

Inside it is renewed with technical solutions that optimize the smoothness of moving parts, improve the damping coefficient and increase the stability at high temperatures, without forgetting the use of light materials to lower the overall weight. The Ø 14mm rod increases smoothness while the piston of Ø 30mm reduces the masses of fluid in motion for a faster response to stress, particular attention was dedicated to maximize the sensitivity and accuracy of adjustments. XXZ is designed to reduce inertia and ensure an immediate control of suspension oscillations.

TARGET is to give the rider precise control and increase maximum grip, as well as even tyre wear which is  provided by the immediate damping force. This gives confidence to the rider in the corners even at extreme lean angles, during fast direction changes and under hard  acceleration. At the same time it provides excellent stability of the rear, even under the most extreme braking, regardless of the track  or surface condition.


TECHNICAL FEATURES

Dedicated to the most demanding of riders, it is the most extreme version of our XXZ, the piston rod is treated to reach a stable performance over time.

Hydraulic preload adjustment

DLC COATING of the piston rod to reduce friction, therefore providing an immediate damping feedback during suspension oscillations.

ADJUSTABLE IN:

• Low speed compression     24 clicks
• High speed compression    20 clicks
• Rebound                                    24 clicks
• Hydraulic spring preload   10 mm = 10 clicks
• Length                                        8mm
• High speed rebound            20 clicks
• All adjustments can be made with one single tool.  A 4mm allen key is the only tool required to adjust preload, compression and rebound

Please note - Delivery time is about 3-6 weeks on these from Italy.
